- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- VERTIV
- Product Line
- MPH2
- Product Series
- B
- Product Type
- PDU

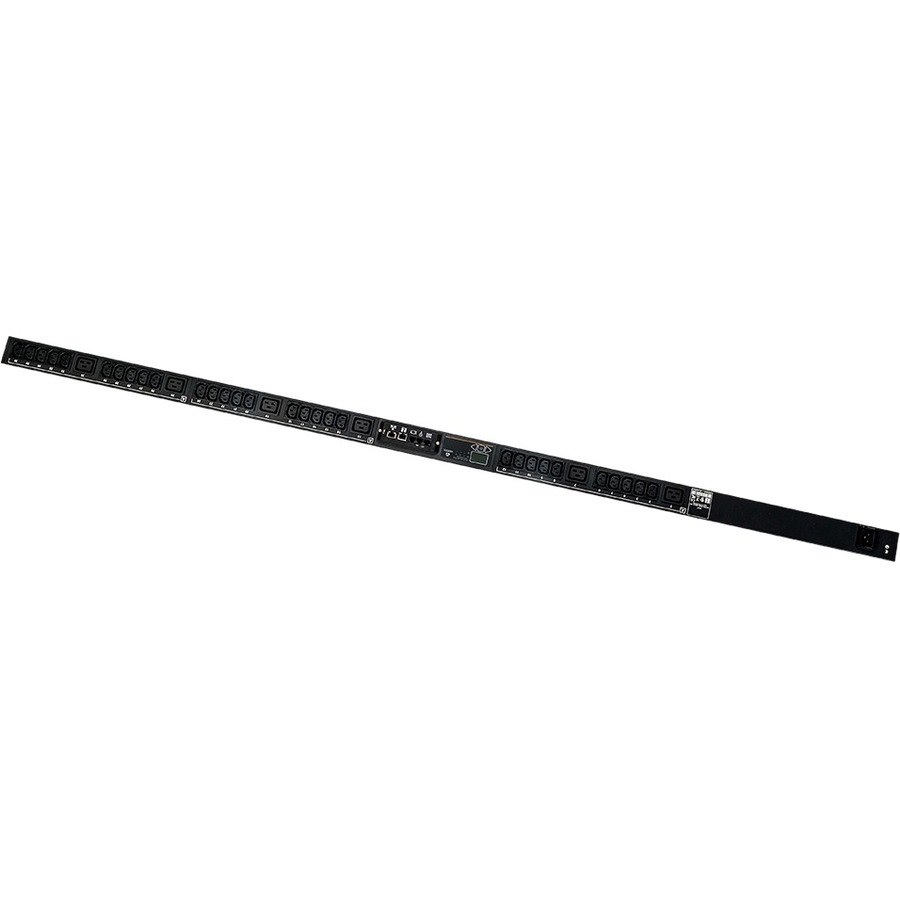

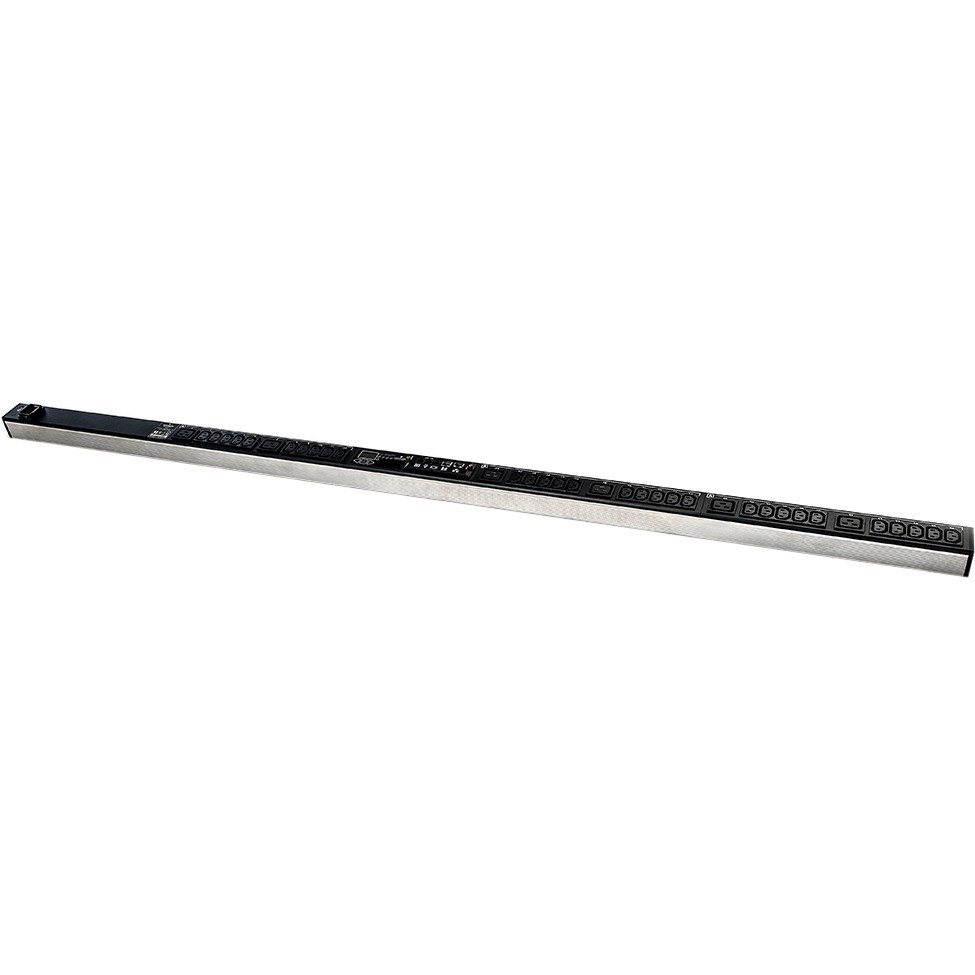

The Vertiv MPH2 Managed Rack PDU is a power supply system with monitoring and control functions. The Vertiv MPH2 offers outstanding features such as easy rack-integration and management architecture as well as optimum availability and energy efficiency.
- Technical Information
- PDU Type
- Metered
- Phase
- Single Phase
- Plug/Connector Type
- IEC 60320 C20
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 30 x IEC 60320 C13
- 6 x IEC 60320 C19
- Power Description
- Input Voltage
- 230 V AC
- Input Voltage Range
- 120 V AC - 230 V AC
- Output Voltage
- 120 V AC
- 230 V AC
- Power Rating (Watt)
- 3.70 kW
- Input Current
- 20 A
- Management
- Management
- Onboard Web Interface
- CLI
- SNMPv1,2,3
- SSH
- Telnet
- Integratable into Avocent ACS
- UMG & MPU
- DSView
- Rack Power Manager
Vertiv Management Software Programs:
- Nform
- Trellis
- Nagios
- Remote Outlet Switching
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mounting Orientation
- Vertical
- Width
- 56 mm
- Depth
- 50 mm
- Miscellaneous
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
