- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- AVOCENT
- Product Line
- MPU
- Product Type
- KVM Switchbox

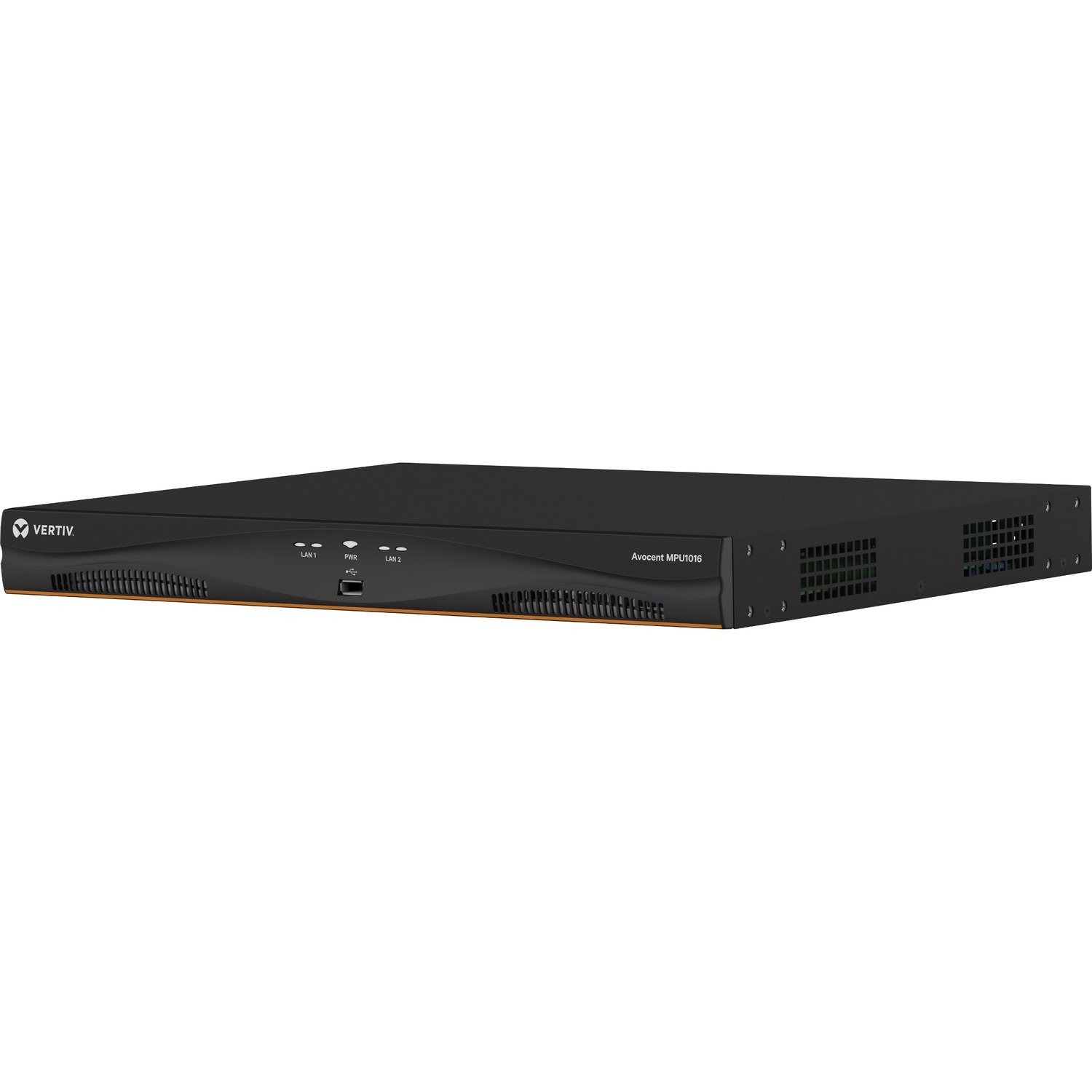

The Avocent MergePoint Unity switch includes both KVM over IP and Serial Console Management technology in a single appliance. This unique combination provides IT Administrators a complete remote management solution to access and control servers, networking equipment, and other devices found in data centers and branch offices.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- KVM Technology
- Digital
- Number of Computers Supported
- 16
- Number of Local Users Supported
- 1
- Number of Remote Users Supported
- 1
- Device Type
- KVM over IP
- Video
- Graphic Mode
- SXGA
- Maximum Video Resolution
- 1600 x 1200
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 2
- Number of USB Ports
- 4
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100V AC to 240V AC
- Physical Characteristics
- Form Factor
- Rack-mountable
- Rack Height
- 1U
- Height
- 43.7 mm
- Width
- 431.8 mm
- Depth
- 339.9 mm
- Weight (Approximate)
- 3.90 kg
