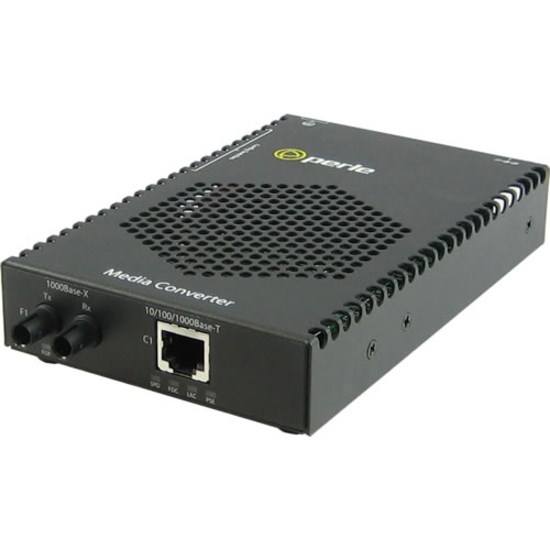

Perle 10/100/1000 Industrial Temperature PoE+ Media Converter

  • Part: 1280316
  • Model: 5090630
$3,494.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Perle Systems, Inc
    • Manufacturer Website Address
    • http://www.perle.com
    • Brand Name
    • Perle
    • Product Type
    • Transceiver/Media Converter

The S-1110P-XT Industrial Temperature PoE Media Converters address the need for transparently connecting 10/100/1000 Ethernet equipment that operate in extreme temperatures to fiber while providing Power over Ethernet ( PoE ) to standards-based PoE and PoE+ compliant devices.

The S-1110P-XT PoE Media Converters will operate in industrial grade temperatures of -40F to +167F (-40C to +75C). Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. Boasting this extended temperature feature along with a rugged steel casing, the S-1110P-XT Media Converter provides an economical path to extend the distance between two industrial devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.

  • Interfaces/Ports
    • Total Number of Ports
    • 2
    • Network (RJ-45)
    • Yes
    • DVI
    • No
    • USB
    • No
    • Parallel Port
    • No
    • Digital Audio
    • No
    • Digital Audio/Video
    • No
    • Management Port
    • No
    • Number of PoE+ (RJ-45) Ports
    • 1
    • Number of Network (RJ-45) Ports
    • 1
    • Number of ST Ports
    • 1
    • ST Port Type
    • Duplex
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Optical Fiber
    • Fiber Mode Supported
    • Multi-mode
    • Maximum Distance Supported
    • 10 km
  • Network & Communication
    • Ethernet Technology
    • Gigabit Ethernet
    • Network Technology
    • 100/1000Base-T
    • 1000Base-LX/LH
  • Physical Characteristics
    • Form Factor
    • Rail-mountable
    • Rack-mountable
    • Desktop
    • Height
    • 25.4 mm
    • Width
    • 94 mm
    • Depth
    • 149.9 mm
    • Weight (Approximate)
    • 450 g
